Kia Telluride (LQ2, 2027-2026) Owner's Manual / Specifications / Dimensions

Subaru Forester: Specifications / Dimensions

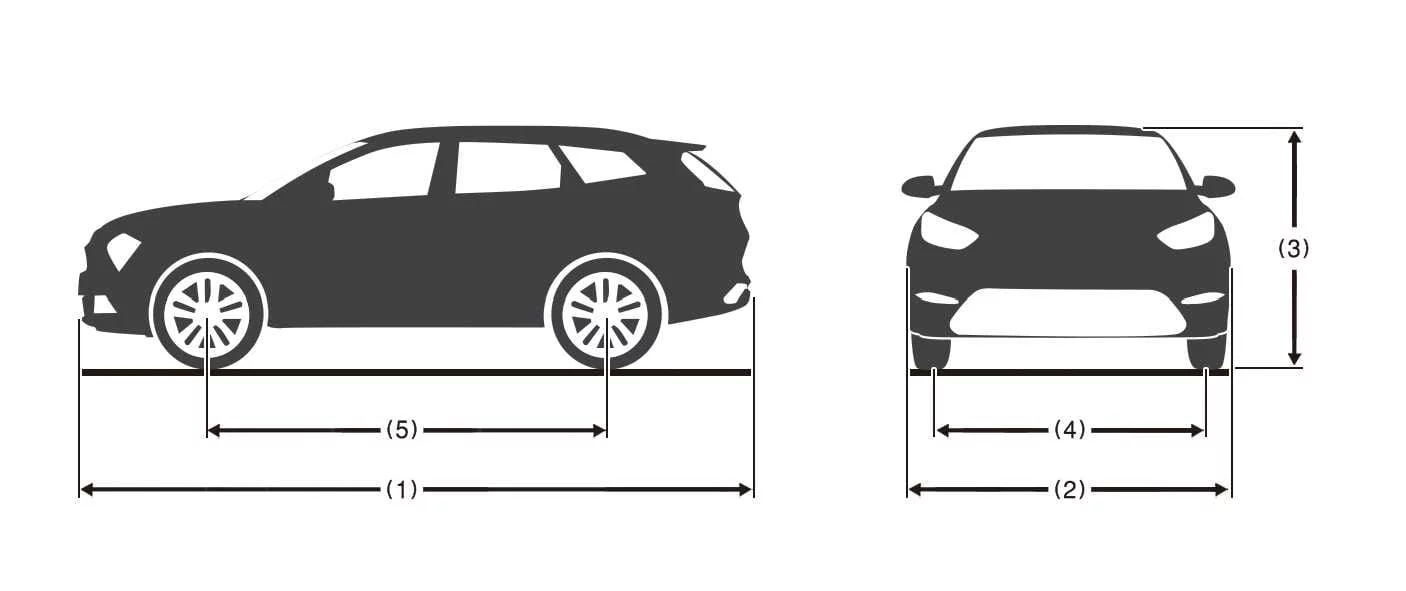

Technical illustration outlining the exterior dimensions and wheelbase of the Kia Telluride


Item				7, 8 Seats inches (mm)
Item				Base	X-Line	X-Pro
(1)	Overall length of the Kia Telluride			199.2 (5,060)
(2)	Overall width			78.3 (1,990)
(3)	Overall height	Without roof rack		69.5 (1,765)		70.5 (1,790)
(3)	Overall height	With roof rack		69.9 (1,775)	70.5 (1,790)	71.5 (1,815)
(4)	Tread width	Front	235/65 R18	67.7 (1,720)		-
			255/60 R18	-		67.4 (1,713)
			255/50 R20	67.3 (1,709)		-
			265/45 R21	67.4 (1,711)		-
		Rear	235/65 R18	68.2 (1,732)		-
			255/60 R18	-		68.1 (1,731)
			255/50 R20	67.8 (1,721)		-
			265/45 R21	67.8 (1,723)		-
(5)	Wheelbase of the Kia Telluride			116.9 (2,970)
