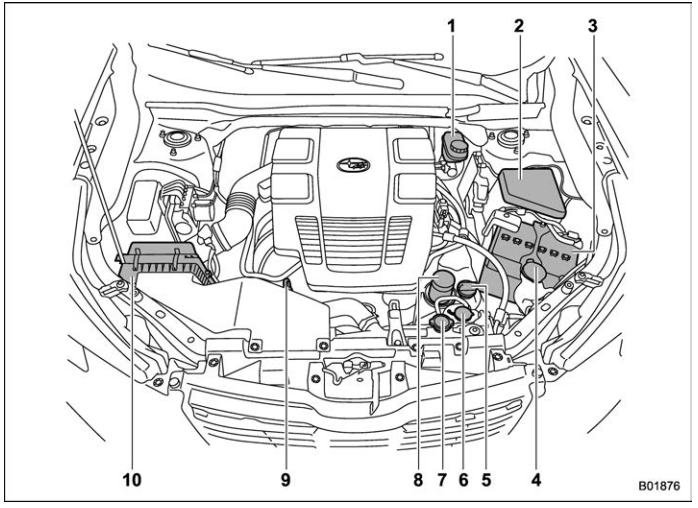

Subaru Forester. Engine compartment overview

  1. Brake fluid reservoir
  2. Fuse box
  3. Battery
  4. Windshield washer tank
  5. Engine oil filler cap
  6. Engine coolant reservoir
  7. Radiator cap
  8. Engine oil filter
  9. Engine oil level gauge
  10. Air cleaner case

    Engine hood

    C..

    Engine oil

    CAUTION If the level gauge cannot be pulled out easily, twist the level gauge right and left, then gently pull it out. Otherwise, you may be injured accidentally straining yourself...
