Subaru Forester: Illustrated index / Exterior

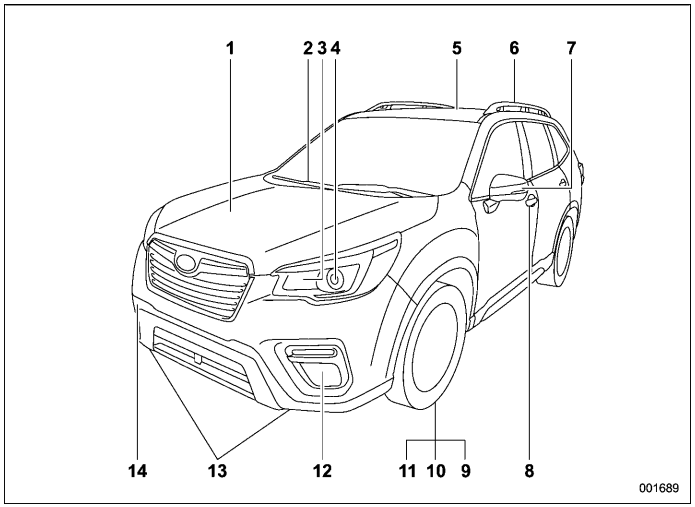

Subaru Forester. Exterior

  1. Engine hood
  2. Windshield wipers
  3. Replacing bulbs
  4. Headlights
  5. Moonroof
  6. Roof rails
  7. Outside mirrors
  8. Door locks
  9. Tire pressure
  10. Flat tires
  11. Snow tires
  12. Fog lights
  13. Tie-down hooks
  14. Towing hook

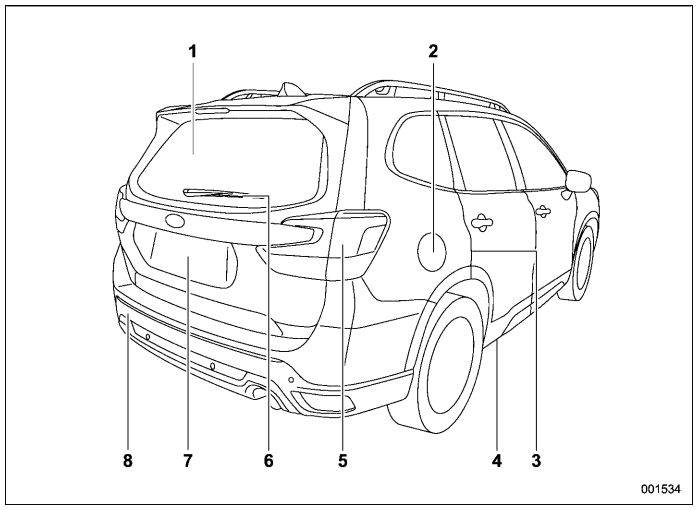

Subaru Forester. Exterior

  1. Rear window defogger
  2. Fuel filler lid and cap
  3. Child safety locks
  4. Tie-down hole
  5. Replacing bulbs
  6. Rear window wiper
  7. Rear gate
  8. Towing hook
