Subaru Forester 2019-2026 Owners Manual / Specifications / Fuses and circuits / Fuse panel located in the passenger compartment

Subaru Forester: Fuses and circuits / Fuse panel located in the passenger compartment

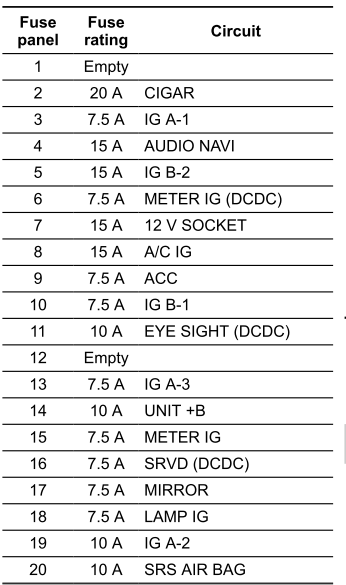

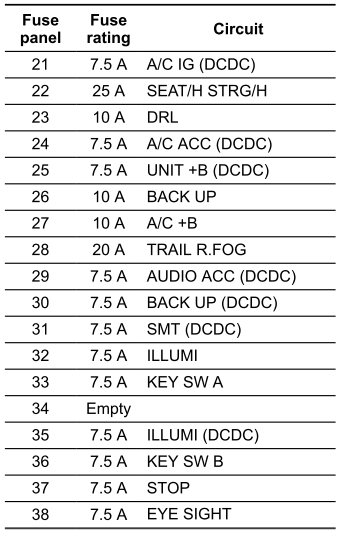

Subaru Forester. Fuse panel located in the passenger compartment

Fuses and circuits

Fuse panel located in the engine compartment

Main fuse ..
