Subaru Forester: Rear seats / Return the rear seatback
WARNING
- When returning the seatback to
its original position, observe the
following precaution.
Failure to observe the precaution may damage the seatbelt, impairing its effectiveness, and possibly result in a serious injury.

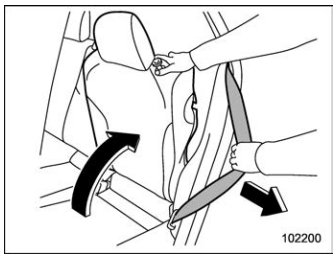

- When returning the seatback to its original position, pull the seatbelt out towards the vehicle exterior so that it will not be caught between the seatback and the trim.

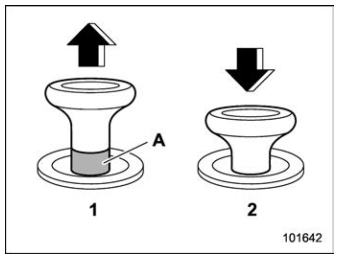

Lock release knob
- Unlocked
- Locked
- Unlocking marker in red
To return the seatback to its original position, raise the seatback until it locks into place and make sure that the unlocking marker on the lock release knob is no longer visible.
WARNING
When you return the seatback to its original position, check that the unlocking marker on the lock release knob is not visible. Also, shake the seatback slightly to confirm that it is securely fixed in place. If the seatback is not securely fixed in place, the seatback may suddenly fold down in the event of sudden braking, or objects may move out from the cargo area, which could cause serious injury or death.
Reclining the seatback (if equipped)
WARNING
To prevent the passenger from sliding
under the seatbelt in the event of
a collision, observe the following
precautions:
Keep the seatback in the upright
position while the vehicle is in
motion...
