Subaru Forester: Specifications / Specifications

These specifications are subject to change without notice.

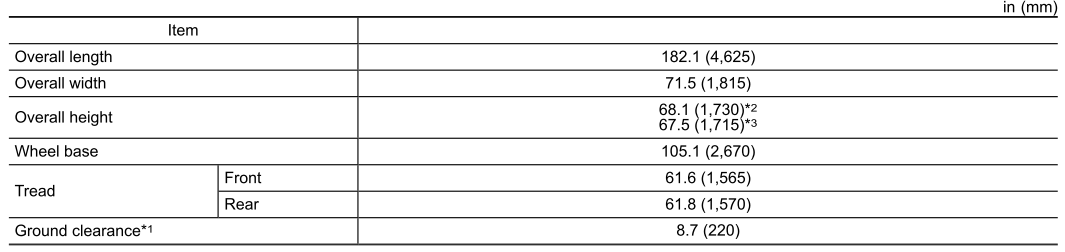

Dimensions

Subaru Forester. Specifications

*1: Measured with vehicle empty

*2: Models with roof rails

*3: Models without roof rails

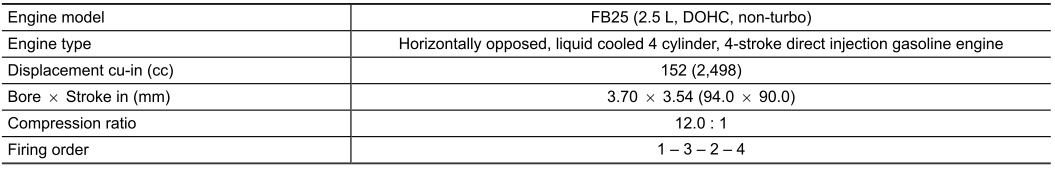

Engine

Subaru Forester. Specifications

Fuel

Subaru Forester. Specifications

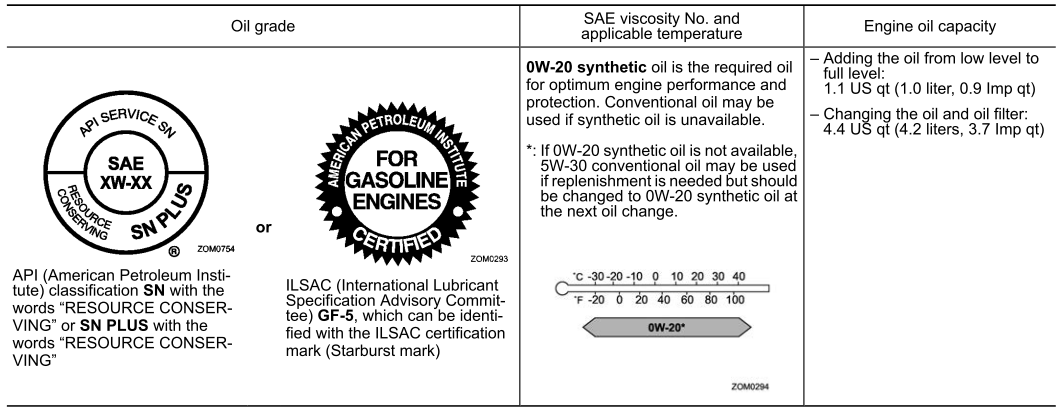

Engine oil

NOTE

The procedure for changing the engine oil and oil filter should be performed by a properly-trained expert. It is recommended that you have this service performed by your SUBARU dealer.

Approved engine oil

Always use the SUBARU approved engine oil. For further details, please contact your SUBARU dealer. If the approved engine oil is unavailable, use the alternative engine oil described on the next page.

Alternative engine oil

If the SUBARU approved oil is unavailable, the following alternative oil can be used.

NOTE

Each quantity indicated here is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors.

Subaru Forester. Specifications

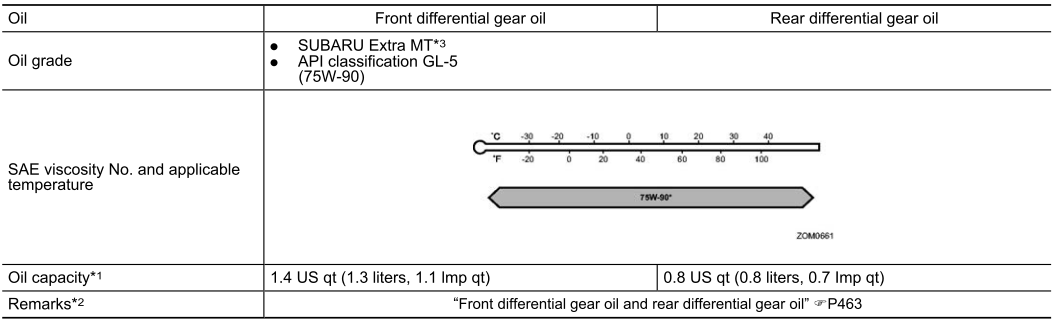

Front differential and rear differential gear oil

Subaru Forester. Specifications

*1: The indicated oil quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors. After refilling the gearbox with oil, the oil level should be checked.

*2: For more details about maintenance and service, refer to the indicated section.

*3: The vehicle is filled at the factory with this type of oil.

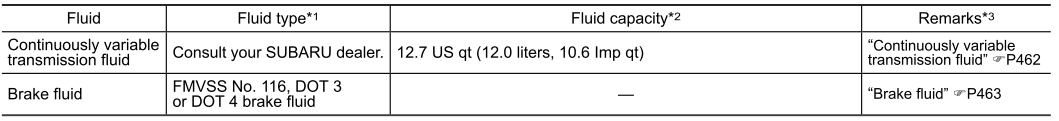

Fluids

Subaru Forester. Specifications

*1: Use one of the indicated types of fluid.

*2: The indicated fluid quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors.

*3: For more details about maintenance and service, refer to the indicated section.

Engine coolant

Subaru Forester. Specifications

The indicated coolant quantity is only a guideline. The necessary quantity for replacement may differ slightly depending on the temperature and other factors. For more details about maintenance and service, refer to “Cooling system”.

Electrical system

Subaru Forester. Specifications

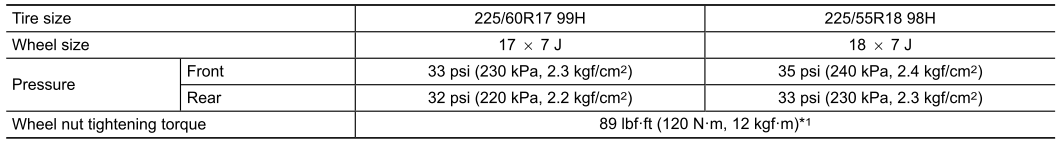

Tires

Subaru Forester. Specifications

*1: This torque is equivalent to applying approximately 88 to 110 lbf (40 to 50 kgf) at the end of the wheel nut wrench. If you have tightened the wheel nuts by yourself, have the tightening torque checked at the nearest automotive service facility as soon as possible. For the wheel nut tightening procedure, refer to “Changing a flat tire”.

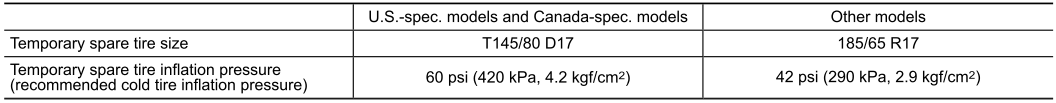

Temporary spare tires

Subaru Forester. Specifications

Brake pedal

Subaru Forester. Specifications

*: Minimum value when pedal is operated with a force of 110 lbf (490 N, 50 kgf)

Brake disc

If you need information on the usage limit value of brake discs and the method for measuring them, we recommend that you consult your SUBARU dealer.

Brake pad

Subaru Forester. Specifications

    Specifications

    ..

    Fuses and circuits

    ..
