Subaru Forester: SRS airbag (Supplemental Restraint System airbag) / SUBARU advanced frontal airbag system

Your vehicle is equipped with a SUBARU advanced frontal airbag system that complies with the new advanced frontal airbag requirements in the amended Federal Motor Vehicle Safety Standard (FMVSS) No. 208.

The SUBARU advanced frontal airbag system automatically determines the deployment force of the driver’s SRS frontal airbag at the time of deployment as well as whether or not to activate the front passenger’s SRS frontal airbag and, if activated, the deployment force of the SRS frontal airbag at the time of deployment.

Subaru Forester. SUBARU advanced frontal airbag system

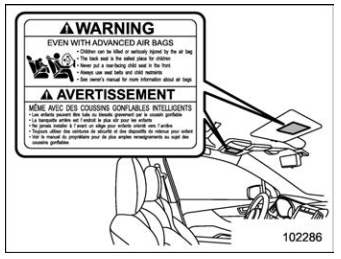

Your vehicle has warning labels on the driver’s and front passenger’s sun visors beginning with the phrase “EVEN WITH ADVANCED AIR BAGS” and a tag attached to the glove box lid beginning with the phrase “Even with Advanced Air Bags”. Make sure that you carefully read the instructions on the warning labels and tag.

Always wear your seatbelt. The SUBARU advanced frontal airbag system is a supplemental restraint system and must be used in combination with a seatbelt. All occupants should wear a seatbelt or be seated in an appropriate child restraint system.

For the locations of the SRS airbags, refer to “Components”.

In a moderate to severe frontal collision, the following components deploy.

SRS frontal airbag for driver
SRS frontal airbag for front passenger
SRS knee airbag for driver
SRS curtain airbag*1

*1: When an offset frontal collision that is severe enough to deploy the front airbag occurs.

These components supplement the seatbelts by reducing the impact to the occupant’s head, chest and knees.

Components

Driver’s SRS frontal airbag

The driver’s SRS frontal airbag uses a dual stage inflator. The inflator operates in different ways depending on the severity of impact. SRS airbag system warning light Have the system inspected by your SUBARU dealer immediately if the SRS airbag system warning light illuminates...
