Subaru Forester 2019-2022 Owners Manual / Starting and operating / BSD/RCTA (if equipped) / BSD/RCTA OFF indicator light / System temporary stop
Subaru Forester: BSD/RCTA OFF indicator light / System temporary stop

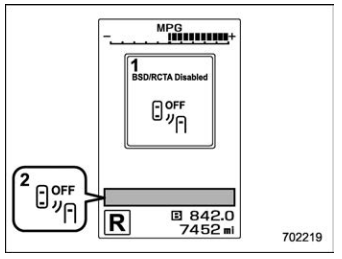

- BSD/RCTA temporary stop message
- BSD/RCTA OFF indicator light
This display appears when the system is used under the following conditions.
- Extremely high or low temperatures
- When abnormal voltage exists for the vehicle battery.
- When the radar sensor is significantly misaligned.
Once the above conditions are corrected, the system will recover from the temporary stop condition and the indicator will disappear. If the indicator remains displayed for a prolonged time, have the system inspected at a SUBARU dealer.
System temporary stop due to reduced
radar sensitivity
BSD/RCTA temporary stop message due
to reduced radar sensitivity
BSD/RCTA OFF indicator light
This display appears when the detectability
of the radar sensors is reduced...
Other information:
Subaru Forester 2019-2022 Owners Manual: RAB warning light (if equipped)
This indicator illuminates if the Reverse Automatic Braking (RAB) system malfunctions. Refer to “Reverse Automatic Braking (RAB) system”. RAB OFF indicator light This indicator illuminates when the Reverse Automatic Braking (RAB) system is turned OFF, or when the Reverse Automatic Braking (RAB) system is suspended temporarily...
Subaru Forester 2019-2022 Owners Manual: Wear indicators
New tread Worn tread Tread wear indicator Each tire incorporates a tread wear indicator, which becomes visible when the depth of the tread grooves decreases to 0.063 in (1.6 mm). A tire must be replaced when the tread wear indicator appears as a solid band across the tread...
