Subaru Forester: If you have a flat tire (with spare tire) / Jack label

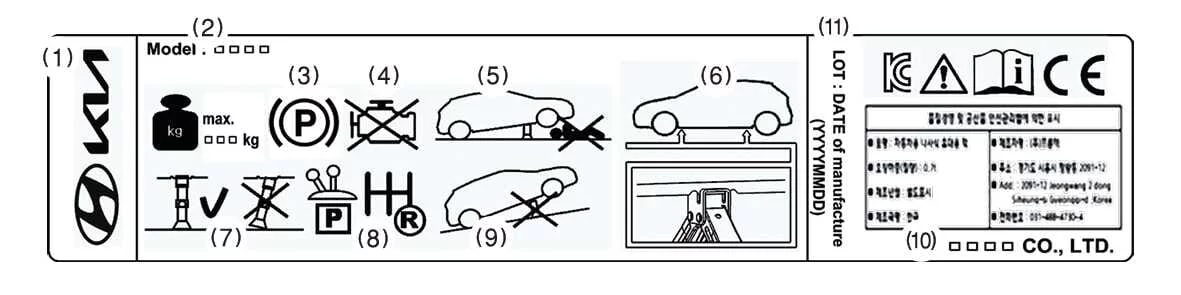

Figure 1. Type A
Safety instruction jack label Type A layout for Kia Telluride emergency lifting equipment

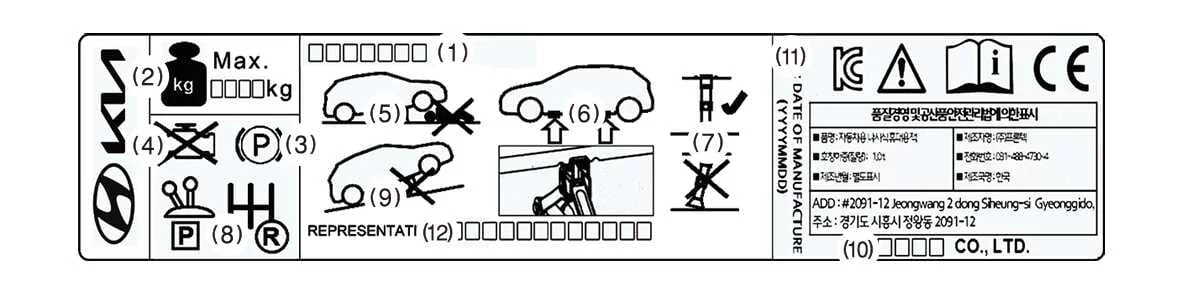

Figure 2. Type B
Safety instruction jack label Type B diagram showing operational warnings for Kia Telluride jack

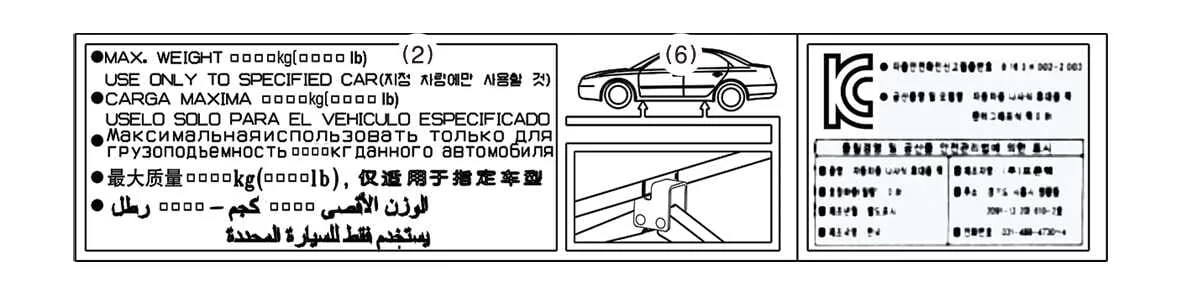

Figure 3. Type C
Safety instruction jack label Type C specifications badge on factory Kia Telluride scissor jack

The exact sticker placement and visual format of the jack label supplied with your vehicle may vary slightly from the diagrams shown above. Always consult the physical label affixed directly to your Kia Telluride factory jack for these critical operating parameters:

  1. Model Name

  2. Maximum allowable load

  3. When using the jack, apply your parking brake

  4. When using the jack, stop the engine

  5. Do not get under a vehicle that is supported by a jack

  6. Use the designated jack locations under the frame

  7. When supporting the vehicle, the base plate of the jack must be vertical under the lifting point

  8. Shift to P (Park)

  9. The jack should be used on firm, level ground

  10. Jack manufacturer

  11. Production date

  12. Representative company and address

    Important - use of compact spare tire

    Y..
