Kia Telluride (LQ2, 2027-2026) Owner's Manual / Maintenance / Light bulbs / Light bulb position (Rear)

Subaru Forester: Light bulbs / Light bulb position (Rear)

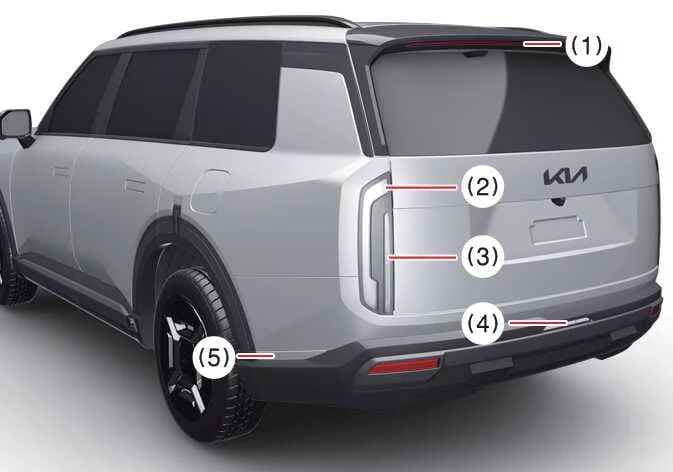

Figure 1. Rear combination lamp (Type A)
Rear taillight cluster schematic layout showing Type A configuration on the Kia Telluride

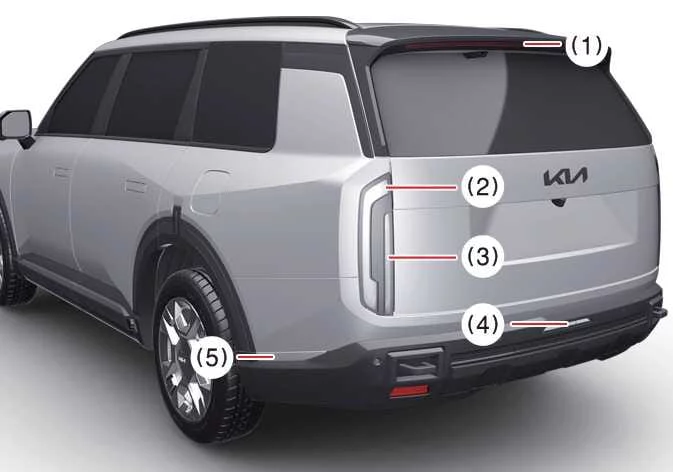

Figure 2. Rear combination lamp (Type B)
Rear taillight cluster schematic layout showing Type B configuration on the Kia Telluride

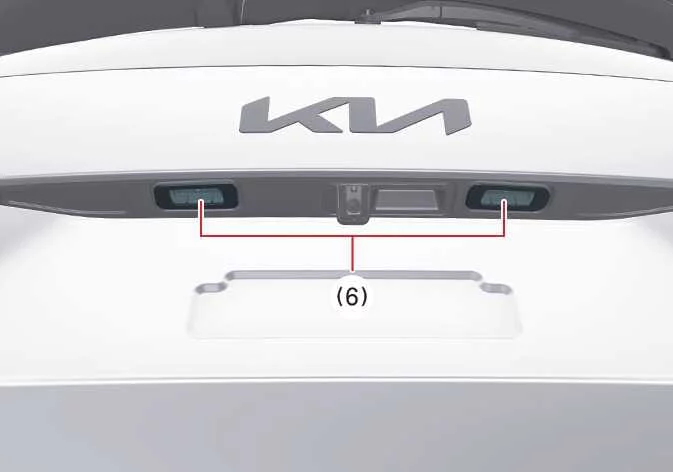

Figure 3. License plate lamp
Rear license plate illumination lamp housing location on the Kia Telluride tailgate

  1. High mounted stop lamp (LED type)

  2. Tail lamp/Stop lamp/Rear turn signal lamp (LED type)

  3. Tail lamp/Stop lamp/Rear turn signal lamp (LED type)

  4. Reversing lamp (LED type)

  5. Rear side marker lamp (LED type)

  6. License plate lamp (LED type)

    Light bulb position (Side)

    ..

    Replacing lights (LED type)

    If any LED light cluster on your Kia Telluride fails to operate correctly, please schedule a comprehensive electrical system inspection with an authorized Kia dealer...
