Subaru Forester: Meters and gauges / Speedometer, Tachometer and Odometer
Speedometer
The speedometer shows the vehicle
speed.
Tachometer
The tachometer shows the engine speed
in thousands of revolutions per minute.
CAUTION
Do not operate the engine with the
pointer of the tachometer in the red
zone. In this range, fuel injection will
be cut by the engine control module
to protect the engine from overrevving.
The engine will resume running
normally after the engine speed
is reduced below the red zone.

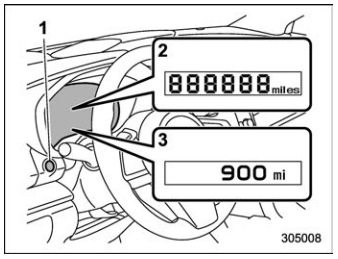

Odometer
![Subaru Forester. Speedometer, Tachometer and Odometer](images/speedometer_tachometer_and_odometer-1666/1480/subaru_forester_speedometer_tachometer_and_odometer_306.gif)
- TRIP RESET switch
- Type A combination meter
- Type B combination meter
This meter displays the odometer when
the ignition switch is in the “ON” position.
The odometer shows the total distance
that the vehicle has been driven.
NOTE
If you press the TRIP RESET switch
when the ignition switch is in the
“LOCK”/“OFF” or “ACC” position, the
odometer/trip meter will light up.
The indicators will turn off when:
- The TRIP RESET switch is not operated
for approximately 10 seconds.
- The driver’s door is opened and then
closed.
