Subaru Forester: Towing / Towing hooks. Front towing hook
The towing hooks should be used only in an emergency.
CAUTION
Use only the specified towing hooks and tie-down hooks/holes. Never use suspension parts or other parts of the body for towing or tie-down purposes.
Front towing hook
- Take the towing hook, screwdriver and
jack handle out of the cargo area.

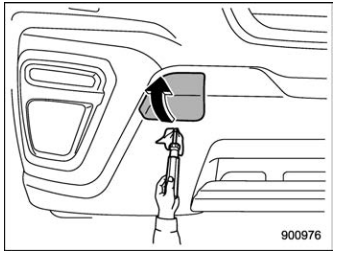

- Cover the tip of a flat-head screwdriver
with vinyl tape or cloth so that it will not
scratch the bumper. Insert the flat-head
screwdriver into the cutout of the cover and
pry open the cover.

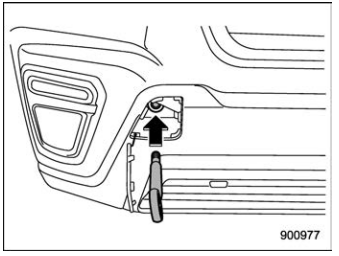

- Screw the towing hook into the thread
hole until its thread can no longer be seen.

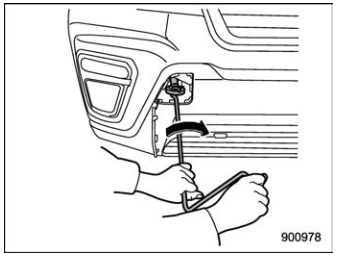

- Tighten the towing hook securely using the jack handle.
After towing, remove the towing hook from the vehicle and stow it in the tool bucket. Fit the towing hook cover on the bumper.
WARNING
Do not use the towing hook except when towing your vehicle. . Be sure to remove the towing hook after towing. Leaving the towing hook mounted on the vehicle could interfere with proper operation of the SRS airbag system in a frontal collision.
CAUTION
To prevent deformation to the bumper and the towing hook, do not apply excessive load to the towing hook.
Towing
I..
Rear towing hook
Take the towing hook and screwdriver
out of the tool bucket. Take the jack handle
out of the cargo area.
Cover the tip of a flat-head screwdriver
with vinyl tape or cloth so that it will not
scratch the bumper...
