Subaru Forester: Combination meter / U.S.-spec. models

Subaru Forester. U.S.-spec. models

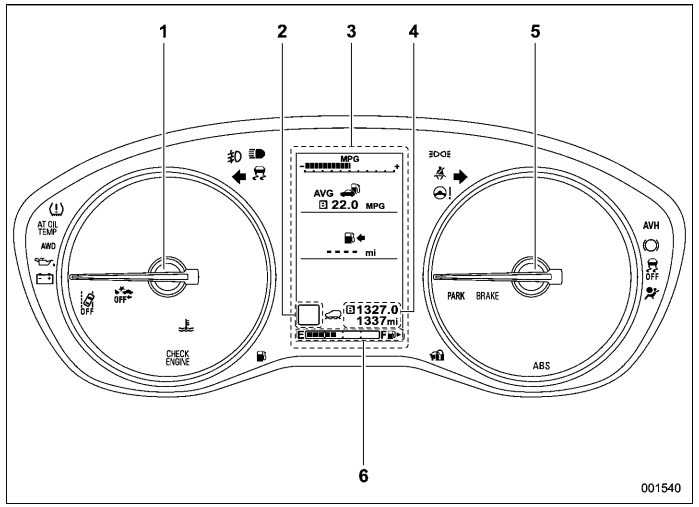

The illustration above is a typical example. For some models, the combination meter may be slightly different than that shown in the illustration.

  1. Tachometer
  2. Select lever/gear position indicator
  3. Combination meter display (color LCD)
  4. Trip meter and odometer
  5. Speedometer
  6. Fuel gauge
