Subaru Forester: Tires and wheels / Wear indicators

Subaru Forester. Wear indicators

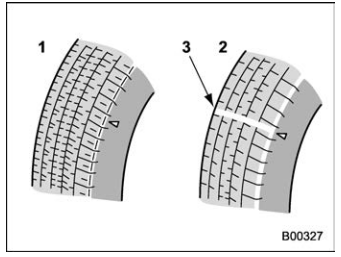

New tread
Worn tread
Tread wear indicator

Each tire incorporates a tread wear indicator, which becomes visible when the depth of the tread grooves decreases to 0.063 in (1.6 mm). A tire must be replaced when the tread wear indicator appears as a solid band across the tread.

WARNING

When a tire’s tread wear indicator becomes visible, the tire is worn beyond the acceptable limit and must be replaced immediately. With a tire in this condition, driving at high speeds in wet weather can cause the vehicle to hydroplane. The resulting loss of vehicle control can lead to an accident.

NOTE

For safety, inspect tire tread regularly and replace the tires before their tread wear indicators become visible.

Wheel balance

E..

Rotational direction of tires

Example of rotational direction marked on the sidewall Front If the tires have specific rotational direction, refer to the arrow marked on the side wall...
