Subaru Forester: Specifications / Bulb chart

Safety precautions

WARNING

Bulbs may become very hot while illuminated. Before replacing bulbs, turn off the lights and wait until the bulbs cool down. Otherwise, there is a risk of sustaining a burn injury.

CAUTION

Replace any bulb only with a new bulb of the specified wattage. Using a bulb of different wattage could result in a fire.

Bulb chart

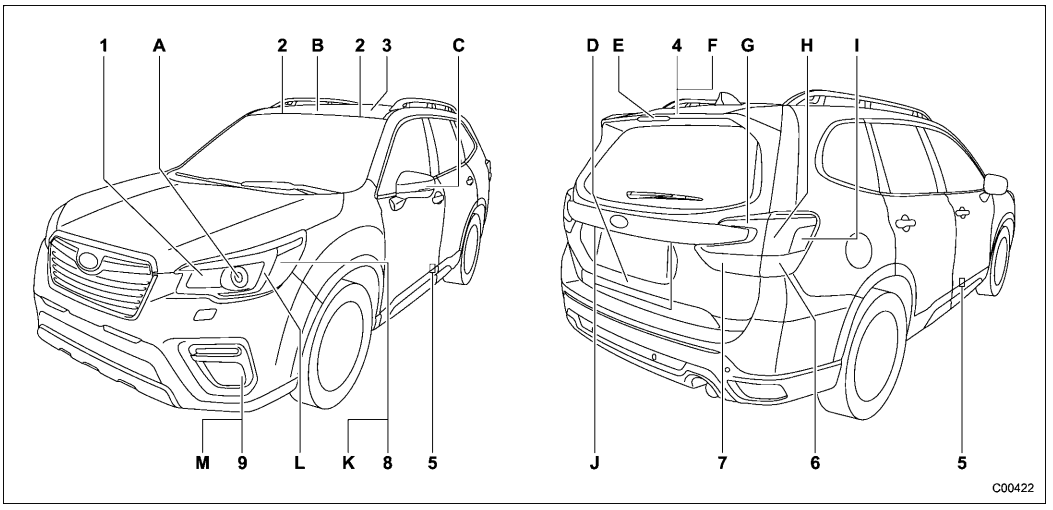

Subaru Forester. Bulb chart

NOTE

Lights A, B, C, D, E, F, G, H, I, J, K, L and M are the LED (Light Emitting Diode) type. Consult your SUBARU dealer for replacement.

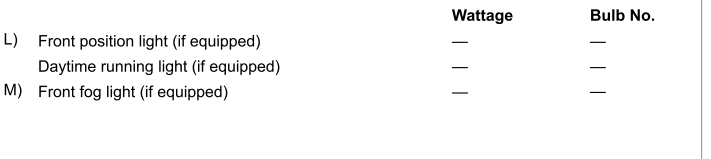

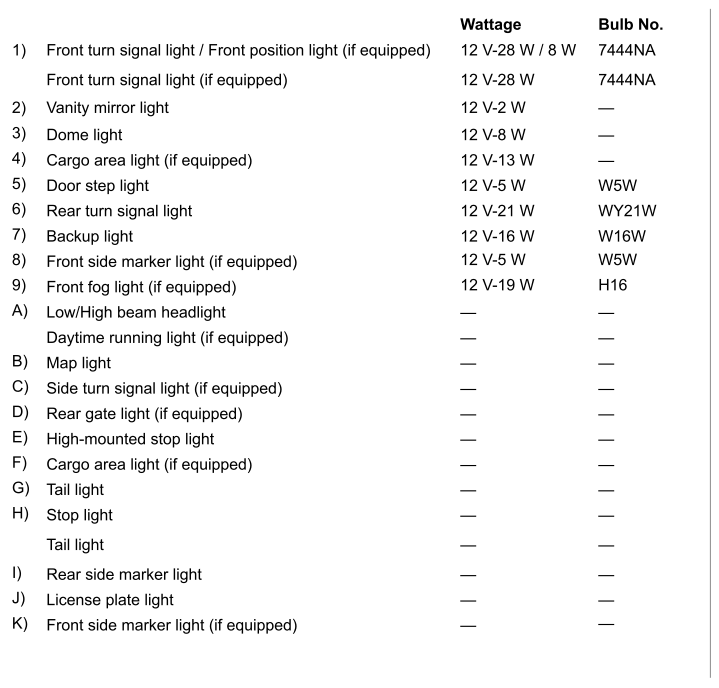

Subaru Forester. Bulb chart

Subaru Forester. Bulb chart

    Fuse panel located in the engine compartment

    ..

    Vehicle identification

    Vehicle identification number (under the floor carpet of the right-hand front seat) Emission control label Tire inflation pressure label Certification label Vehicle identification number label Model number label Fuel label Air conditioner label ..
