Kia Telluride (LQ2, 2027-2026) Owner's Manual / Controls and features / Interior features / Cargo security screen: (if equipped)

Subaru Forester: Interior features / Cargo security screen: (if equipped)

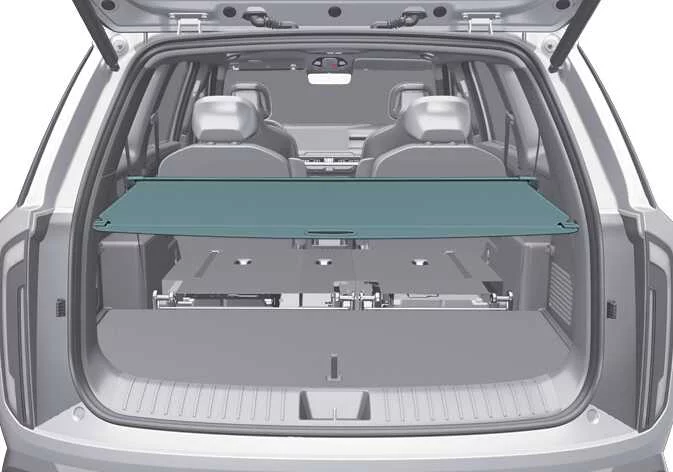

The cargo security screen in your Kia Telluride serves as an effective way to keep your belongings hidden from view and organized within the cargo area.

WARNING

Under no circumstances should anyone be allowed to ride in the luggage compartment; it is strictly intended for cargo transportation only.

For better vehicle stability and handling, always prioritize weight distribution by placing heavier luggage as far forward as possible in the cargo area.

NOTE

Never place items directly on top of the cargo security screen, as the weight can damage the screen's structure. Furthermore, unrestrained cargo can shift violently during braking or in an accident, posing a risk of injury to vehicle occupants.

Using the cargo security screen

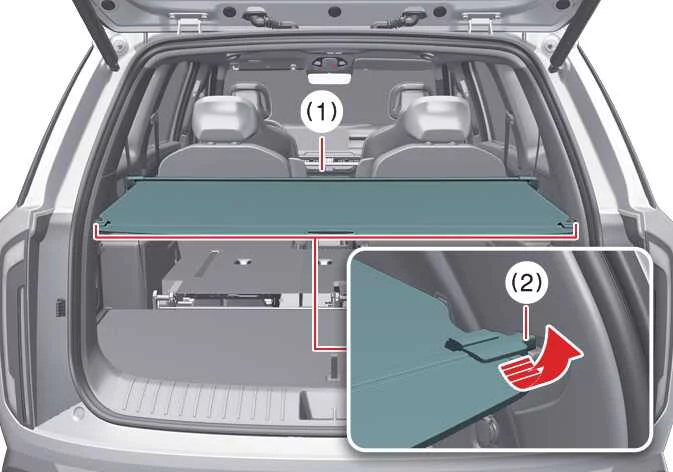

Using the center handle (1), pull the cargo security screen toward the rear of the vehicle.
Secure the screen by inserting the guide pin into the designated guide slot (2).
When you no longer need the screen, pull it slightly backward and upward to disengage it from the guide slots.
The cargo security screen will automatically retract back into its housing.

NOTE

Always pull the screen from the center handle to ensure even tension and prevent the guide pin from inadvertently slipping out of the guide track.

TIP

If the cargo security screen does not retract automatically, it may be because it was not pulled out to its full extension. Pull it out completely, and then release it to allow the mechanism to rewind.

Retrieving the cargo security screen

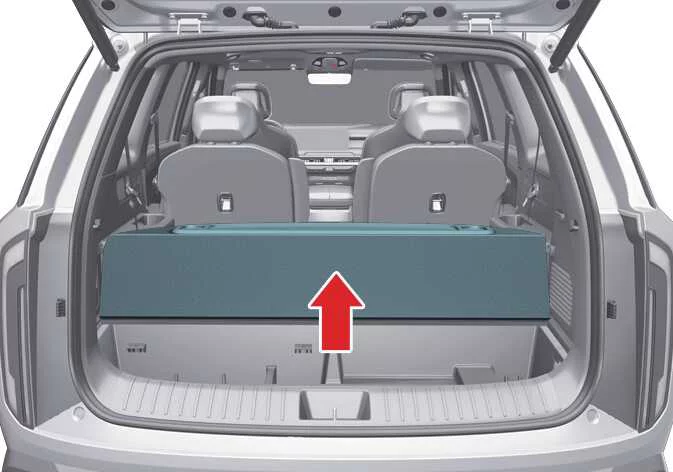

Open the luggage tray cover in the cargo floor.

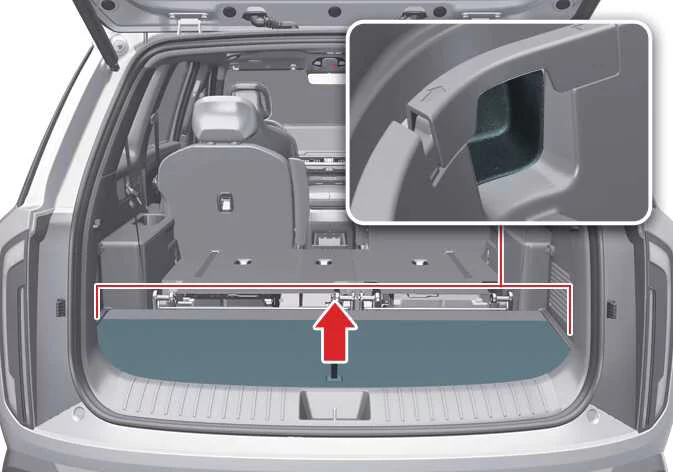

Remove the trim covers from both the left and right sides of the tray area.

While holding the guide pin, carefully pull the cargo security screen out from the luggage tray.
Position the screen in the designated area between the second and third-row seats.

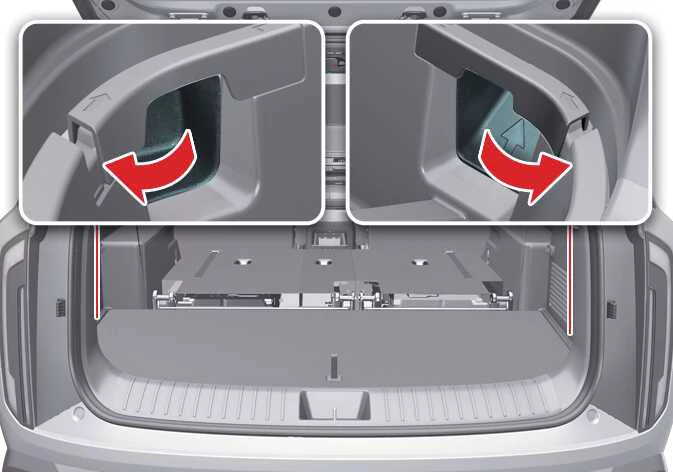

Reinstall the side trim panels in the luggage area.

Stowing the cargo security screen

Open the luggage tray cover once more.

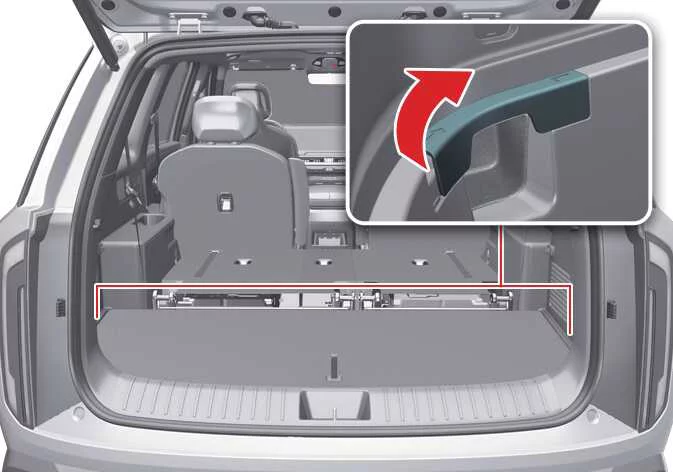

Remove the left and right trim covers from the luggage tray area.

Depress the guide pin and slide the cargo security screen out from its position between the seats.
Securely place the screen back into the designated luggage tray compartment.

Reinstall the side trim panels to finish the storage process.
