Inside the protective fuse and relay panel covers of your Kia Telluride, you will find a detailed reference label outlining the specific name, location, and amperage rating for every fuse and relay housed within the junction block.
TIP
While the fuse panel descriptions provided in this manual are complete and accurate at the time of publication, continuous production updates mean that certain electrical layout configurations, option packages, or specific circuit assignments may vary depending on your exact Kia Telluride trim level and model year.

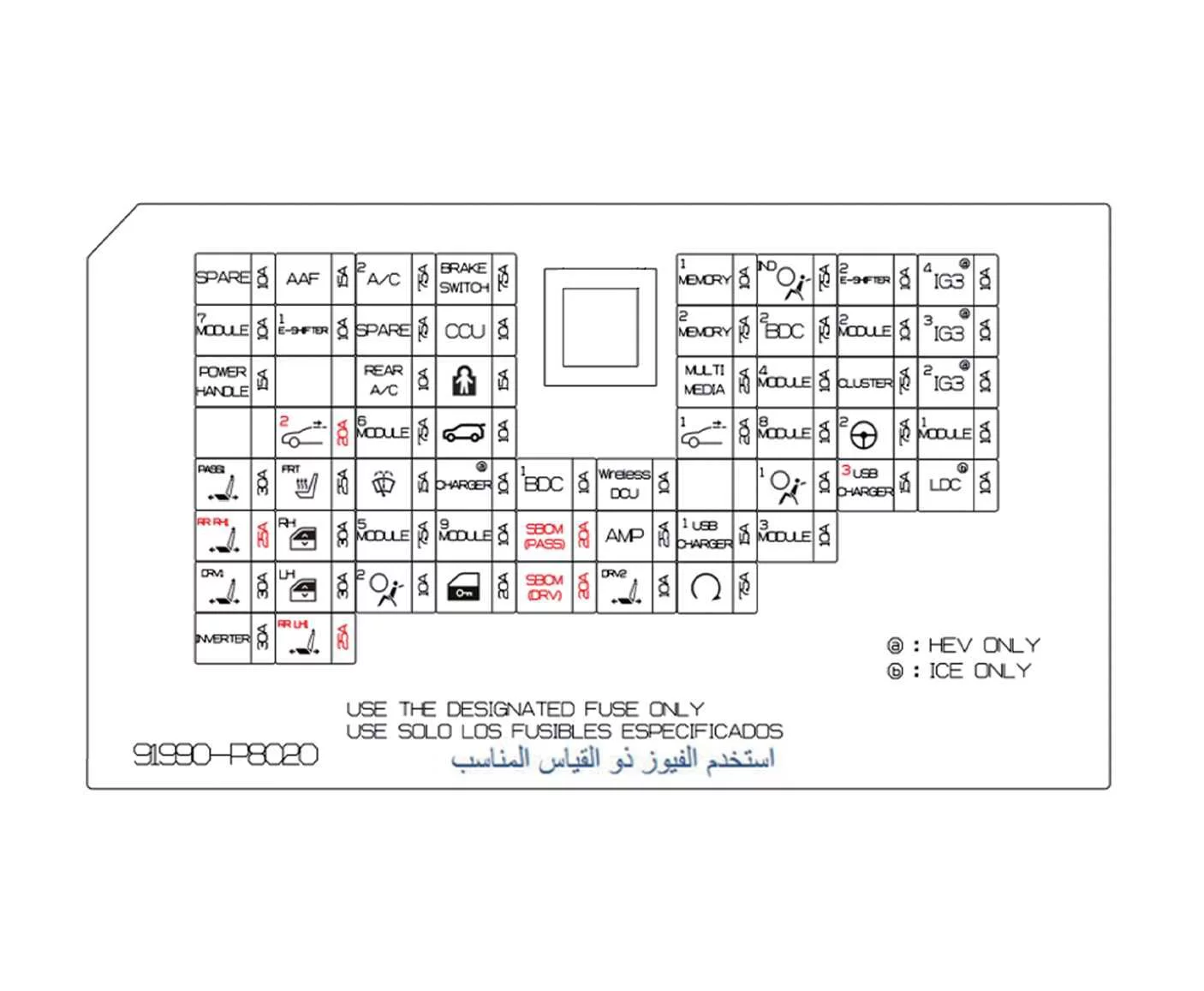

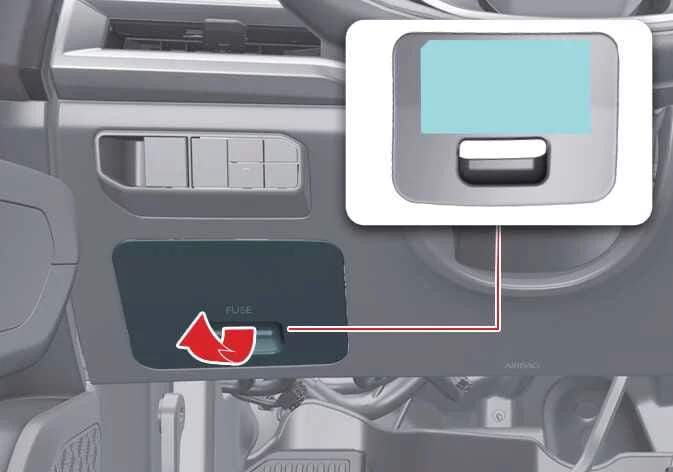

Driver side fuse panel
|
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
SPARE |
10A |
SPARE (Reserved for auxiliary electrical circuit replacement) |
|
AAF |
15A |
AAF (Active Air Flap control motor and aerodynamic shutter system) |
|
A/C2 |
7.5A |
ATCU (Air Temperature Control Unit), ATCU Controller, INCAR SENSOR (In-cabin climate temperature sensor), PTC HEATER 1,2 Relay Coil, E-Compressor (HEV hybrid variants) |
|
BRAKE SW |
7.5A |
BDC (Body Domain Controller module), Stop Lamp Switch circuit |
|
MEMORY1 |
10A |
SAL (Smart Ambient Lighting module), MKBD (Multimedia Keyboard control panel), WPC (Wireless Power Charger tray), RR_ACON (Rear Air Conditioning Controller), ADAS Parking ECU (Advanced Driver Assistance System Parking Control Unit), Rear Corner Radar sensors |
|
A/BAG IND |
7.5A |
PAB IND (Passenger Airbag Indicator warning lamp and display) |
|
E-SHIFTER2 |
10A |
SBW Lever (Shift By Wire electronic gear selector lever assembly) |
|
IG3_4 |
10A |
V2LC Unit (HEV Vehicle-to-Load Controller) and V2LC Outlet power socket (HEV models) |
|
MODULE7 |
10A |
Multifunction steering column switch, ICC UNIT (In-Cabin Camera Unit), SCM (Steering Column Control Module), OBD (On-Board Diagnostics port), Blower motor Relay Coil, Automatic Rain Sensor |
|
E-SHIFTER1 |
10A |
SBW Lever (Shift By Wire electronic transmission selector control logic) |
|
SPARE |
7.5A |
SPARE (Reserved for auxiliary electrical circuit replacement) |
|
CCU |
10A |
CCU (Communication Central Unit network gateway module) |
|
MEMORY2 |
7.5A |
ATCU (Air Temperature Control Unit), ATCU Controller logic, HUD (Head-Up Display projector unit), Digital Instrument CLUSTER |
|
BDC2 |
7.5A |
BDC (Body Domain Controller secondary power feed) |
|
MODULE2 |
10A |
DCU (Data Connectivity Unit), CCU (Communication Central Unit), Stop Lamp Switch interface circuit |
|
IG3_3 |
10A |
BMS (High-Voltage Battery Management System control unit) (HEV hybrid powertrains) |
|
POWER HANDLE |
15A |
SCM (Steering Column Control Module electrically adjustable tilt/telescopic mechanism) |
|
RESERVE |
7.5A |
Not Used (Empty factory auxiliary fuse slot) |
|
REAR A/C |
10A |
RR_ACON (Rear Climate Control and Air Conditioning System interface) |
|
CHILD LOCK |
15A |
Power Child Safety Lock/Unlock door actuators |
|
MULTIMEDIA |
25A |
ccNC (Connected Car Navigation Cockpit main infotainment unit), ISG LDC 200W (Idle Stop & Go Low Voltage DC/DC Converter unit) |
|
MODULE4 |
10A |
Electrochromic Inside Rearview Mirror, ISG LDC 200W (Low Voltage DC/DC Converter), ISG LDC 400W (Low Voltage DC/DC Converter), OBD (On-Board Diagnostics data link connector), ccNC (Connected Car Navigation Cockpit interface), SAL (Smart Ambient Lighting), ICC UNIT (In-Cabin Camera Unit), ATCU (Air Temperature Control), ATCU Controller, WPC (Wireless Power Charger), 2nd Row SEAT LH/RH Buckle Indicator lamps, Meridian External Audio Amplifier, 3rd Row SEAT switch LH/RH folding mechanism, RR_ACON (Rear Climate Unit), Driver SEAT power memory system, Power seat unit, Trailer Tow Control Module |
|
CLUSTER |
7.5A |
CLUSTER main instrument panel and HUD (Head-Up Display project unit) |
|
IG3_2 |
10A |
CCU (Communication Central Unit ignition circuit feed) |
|
RESERVE |
25A |
Not Used (Unassigned factory spare circuit slot) |
|
SUNROOF2 |
20A |
Panoramic Sunroof motor assembly (Rear glass panel drive unit) |
|
MODULE6 |
7.5A |
P_LBM (Parking Lithium Battery Module control system), AC Inverter Power Outlet socket, AC Inverter control unit, Front Head Lamp LH/RH main assemblies |
|
TAILGATE OPEN |
10A |
Smart Power Liftgate Latch Actuator and power release mechanism |
|
SUNROOF1 |
20A |
Panoramic Sunroof motor assembly (Front tilt/slide glass drive unit) |
|
MODULE8 |
10A |
Multifunction steering column switch, IMS SW (Integrated Memory Seat Switch), Power window master control switch, Driver & Passenger Power Seat switches, 2nd Row Power Seat controls LH/RH |
|
MDPS2 |
7.5A |
R-MDPS (Rack-type Motor Driven Power Steering system controller) |
|
MODULE1 |
10A |
ccNC (Connected Car Navigation Cockpit), ISG LDC 200W (Low Voltage DC/DC Converter), ISG LDC 400W (Low Voltage DC/DC Converter), DCU (Data Connectivity Unit), MKBD (Multimedia Keyboard control panel), BDC (Body Domain Controller), CCU (Communication Central Unit) |
|
P/SEAT PASS1 |
30A |
Front Passenger Power Seat adjustment motors and Lumbar Support actuators |
|
S/HEATER FRT |
25A |
Front Driver and Passenger Heated/Ventilated Seat climate modules |
|
WASHER |
15A |
Windshield and rear window Washer Fluid Pump Motor |
|
CHARGER |
10A |
V2LC Unit (Vehicle-to-Load Onboard Charging System) (HEV hybrid powertrain variants) |
|
BDC1 |
10A |
BLE MASTER (Bluetooth Low Energy Master transceivers), BLE SLAVE (Bluetooth Low Energy Remote sensors), UWB (Ultra Wideband Digital Key Module), BDC (Body Domain Controller primary power feed) |
|
Wireless DCU |
10A |
DCU (Wireless Data Connectivity Unit telemetry module) |
|
RESERVE |
7.5A |
Not Used (Unassigned factory spare fuse connector) |
|
AIR BAG1 |
10A |
ISCM (Integrated Safety Control Module airbag ECU), ODS (Occupant Detection System weight sensors) |
|
USB CHARGER3 |
15A |
UMM (USB Multi Module high-speed fast charging ports) |
|
LDC |
10A |
MKBD (Multimedia Keyboard control panel), Instrument CLUSTER display, RR_ACON Rear Climate Module, Rear Corner Radar & Front Corner radar modules, ADAS Parking ECU (Advanced Driver Assistance System Parking Control Unit), WPC (Wireless Power Charger tray), HUD (Head-Up Display projector setup) |
|
P/SEAT RR RH1 |
25A |
2nd Row LH Power Seat position control actuators |
|
P/WINDOW RH |
30A |
Power Window Safety ECU (Front Passenger side & Rear RH door power window glass lifters) |
|
MODULE5 |
7.5A |
BDC (Body Domain Controller logic signal power supply) |
|
MODULE9 |
10A |
Rear Climate BLOWER Motor Relay Coil, VESS (Virtual Engine Sound System acoustic alert), 2nd & 3rd Row SEAT Remote Folding switches, Power Liftgate control module, Driver & Passenger exterior door handle capacitive touch sensors, Power seat unit ECUs (Driver, Passenger, Rear LH, Rear RH seats), Driver side Power window master switch, Driver & Passenger exterior mirror puddle lamps |
|
SBCM PASS |
20A |
Side Body-Zone Control Module (Passenger side body electrical zone network node) |
|
AMP |
25A |
Meridian Premium External Audio Amplifier system, ISG LDC 400W (Low Voltage DC/DC Converter unit) |
|
USB CHARGER1 |
15A |
UMM (USB Multi Module front-console media/charging ports) |
|
MODULE3 |
10A |
Front View Camera system, SCM (Steering Column Control Module), ADAS Driving ECU (Advanced Driver Assistance System Autonomous Driving Controller), Crash Pad Switch bank, Rear & Front Corner Radars, ADAS Parking ECU (Advanced Driver Assistance System Parking Control Unit), AWD ECU (Electronic All-Wheel Drive Controller), Center Console Switch assembly, Front Radar sensor, High-voltage hybrid battery cooling fan Relay Coil |
|
P/SEAT DRV1 |
30A |
Driver Power Seat multi-way adjustment motors |
|
P/WINDOW LH |
30A |
Power Window Safety ECU (Driver side & Rear LH door power window glass lifters) |
|
AIR BAG2 |
10A |
ISCM (Integrated Safety Control Module redundant crash sensor circuit) |
|
DOOR LOCK |
20A |
Central Door Lock/Unlock Actuators and Power Fuel Door Release Motor |
|
SBCM DRV |
20A |
Side Body-Zone Control Module (Driver side body electrical zone network node) |
|
P/SEAT DRV2 |
10A |
Driver Power Seat Lumbar Support adjustment actuators |
|
START |
7.5A |
BDC (Body Domain Controller), VPC (Vehicle Platform Controller), Engine Start Signal control line (ECU/BDC) |
|
INVERTER |
30A |
AC 110V/220V Power Inverter processing unit |
|
P/SEAT RR LH1 |
25A |
2nd Row RH Power Seat position control actuators |

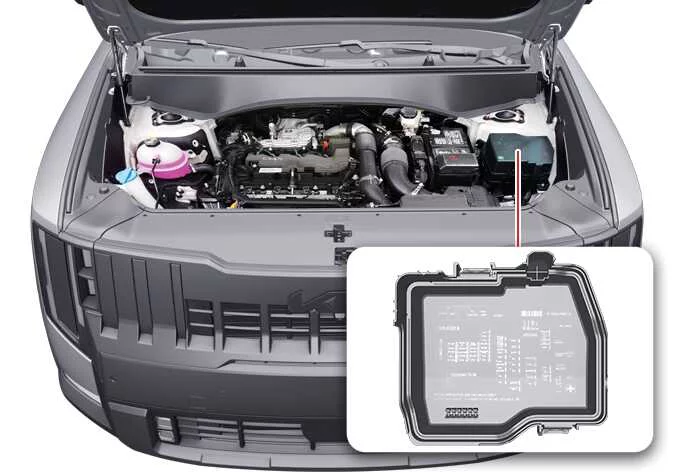

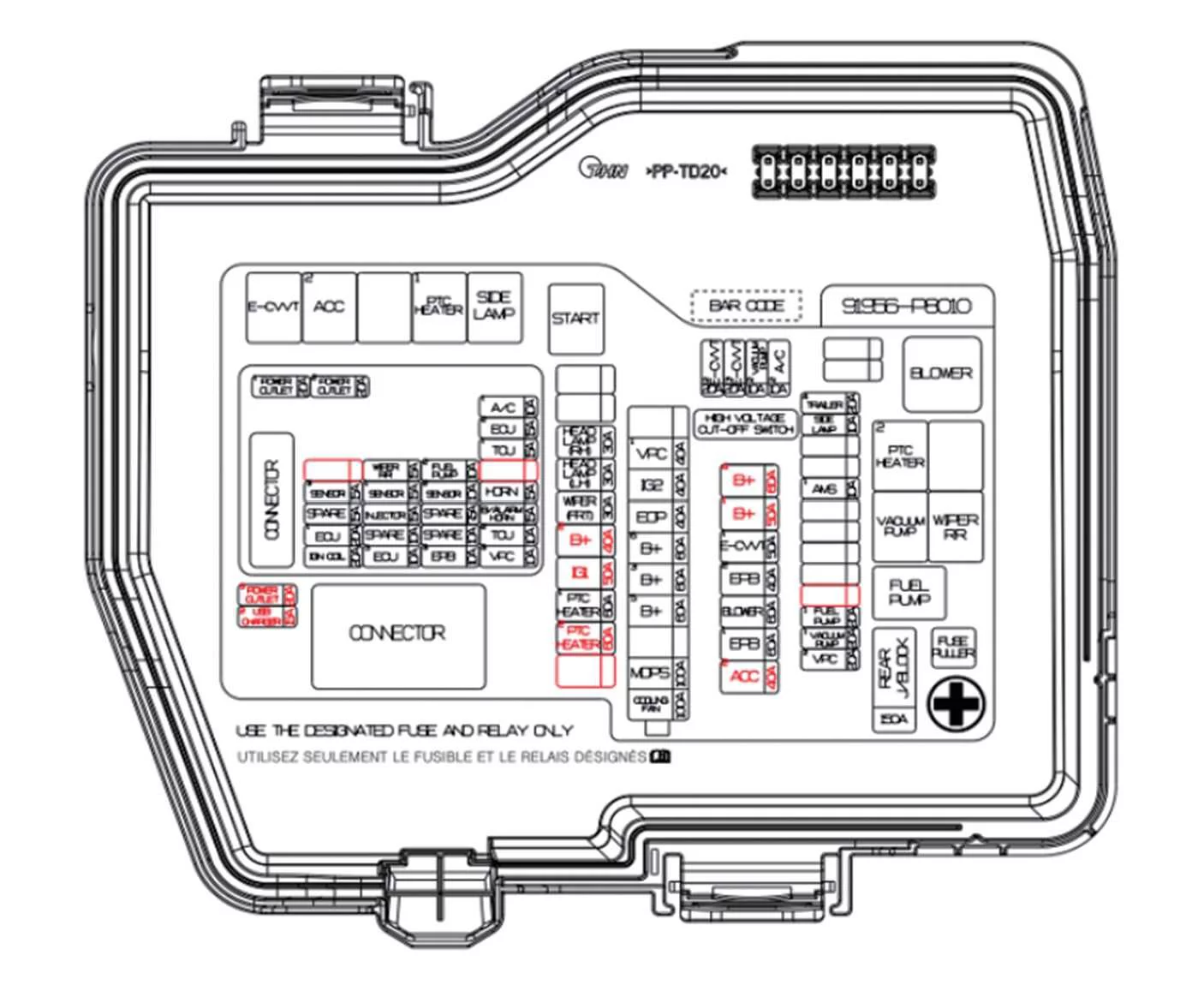

Engine compartment fuse panel
|
Engine compartment fuse replacement. Main fuse (multi-fuse)
To inspect or replace a main power fuse located under the hood, carry out the following procedure:
Shut off the engine, engage the parking brake, and confirm that all electrical controls and the ignition system are in the OFF position.
Re..
