Subaru Forester: Auto Start Stop system / Auto Start Stop warning light

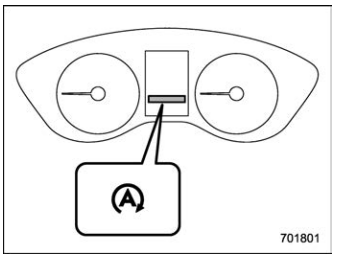

Auto Start Stop warning light (yellow) (type A)

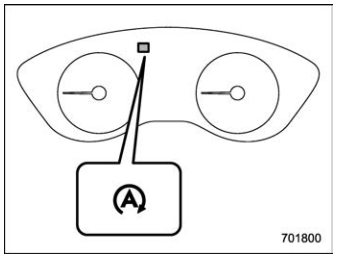

Auto Start Stop warning light (yellow) (type B)
The Auto Start Stop warning light will illuminate in yellow when initially turning the ignition switch to the “ON” position. The light will turn off after the engine has started.
The Auto Start Stop warning light will flash when the Auto Start Stop system is malfunctioning. We recommend that you contact your authorized SUBARU dealer for an inspection.
CAUTION
If the Auto Start Stop warning light does not turn off after the engine has started, the Auto Start Stop system may be malfunctioning. We recommend that you contact your authorized SUBARU dealer for an inspection.
Auto Start Stop OFF switch
Auto Start Stop OFF switch
Auto Start Stop OFF indicator light (yellow) (type A)
Auto Start Stop OFF indicator light (yellow) (type B)
If the Auto Start Stop OFF switch is
pressed, operation of the Auto Start Stop system will be disabled...
