Subaru Forester: Replacing bulbs / Front fog light (if equipped) / Rear turn signal
lights
Front fog light (if equipped)
It may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.
Rear turn signal lights
![Subaru Forester. lights](images/front_fog_light_if_equipped_rear_turn_signal_lights-2187/1480/subaru_forester_lights_973.gif)
- Use a screwdriver to remove the
secured clips of the covers.
![Subaru Forester. lights](images/front_fog_light_if_equipped_rear_turn_signal_lights-2187/1480/subaru_forester_lights_974.gif)
- Push and move the cover to the
forward to unlock the 2 tabs.
![Subaru Forester. lights](images/front_fog_light_if_equipped_rear_turn_signal_lights-2187/1480/subaru_forester_lights_975.gif)
- When unlocked, pull out the covers.
![Subaru Forester. lights](images/front_fog_light_if_equipped_rear_turn_signal_lights-2187/1480/subaru_forester_lights_976.gif)
- Disconnect the electrical connector.
![Subaru Forester. lights](images/front_fog_light_if_equipped_rear_turn_signal_lights-2187/1480/subaru_forester_lights_977.gif)
- Using a Phillips screwdriver, remove
the screws that secure the rear combination
light assembly.
![Subaru Forester. lights](images/front_fog_light_if_equipped_rear_turn_signal_lights-2187/1480/subaru_forester_lights_978.gif)
- Slide the rear combination light assembly
rearward to remove it from the
vehicle.
![Subaru Forester. lights](images/front_fog_light_if_equipped_rear_turn_signal_lights-2187/1480/subaru_forester_lights_979.gif)
- Remove the bulb socket from the rear
combination light assembly by turning it
counterclockwise.
- Pull the bulb out of the bulb socket and
replace it.
- Set the bulb socket into the rear
combination light assembly and turn it
clockwise until it locks.
- Reconnect the electrical connector.
![Subaru Forester. lights](images/front_fog_light_if_equipped_rear_turn_signal_lights-2187/1480/subaru_forester_lights_980.gif)

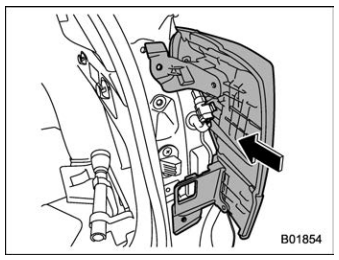

- Put the rear combination light assembly
into place while aligning the 2 pins with
the holes and secure to the vehicle.
![Subaru Forester. lights](images/front_fog_light_if_equipped_rear_turn_signal_lights-2187/1480/subaru_forester_lights_981.gif)
- Tighten the screws.
- Put the covers back in place.
