Subaru Forester: Replacing bulbs / Front turn signal light

Right-hand side

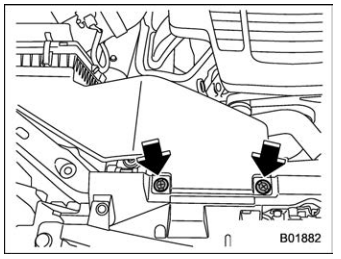

- Use a screwdriver to remove the clips
on the air intake duct, then remove the
duct.

Left-hand side

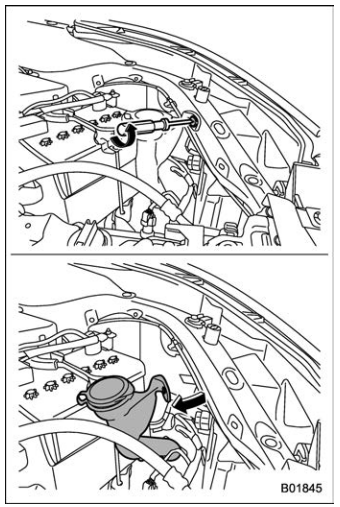

- Use a screwdriver to remove the
secured clip of the washer tank. To make
it easy to access the bulb, turn the neck of
the washer fluid filler pipe as illustrated.

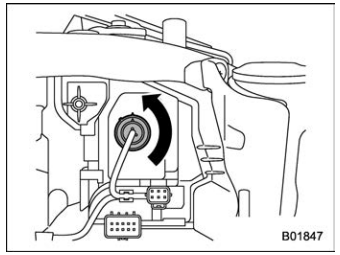

- Disconnect the electrical connector
from the bulb and remove the bulb from
the headlight assembly by turning it
counterclockwise.
- Replace the bulb. At this time, use care
not to touch the bulb surface.
- To install the bulb to the headlight
assembly, turn it clockwise until it clicks.
- Reconnect the electrical connector.
- Put the air intake duct with the clips
(right-hand side).
- Set the washer fluid filler pipe to the
original place and secure it with the clips
(left-hand side).
The LED headlight warning light illuminates
if the LED headlights malfunction.
Have your vehicle inspected at a SUBARU
dealer as soon as possible...
Front fog light (if equipped)
It may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.
Rear turn signal lights
Use a screwdriver to remove the
secured clips of the covers...
