Subaru Forester: SRS airbag (Supplemental Restraint System airbag) / Operation

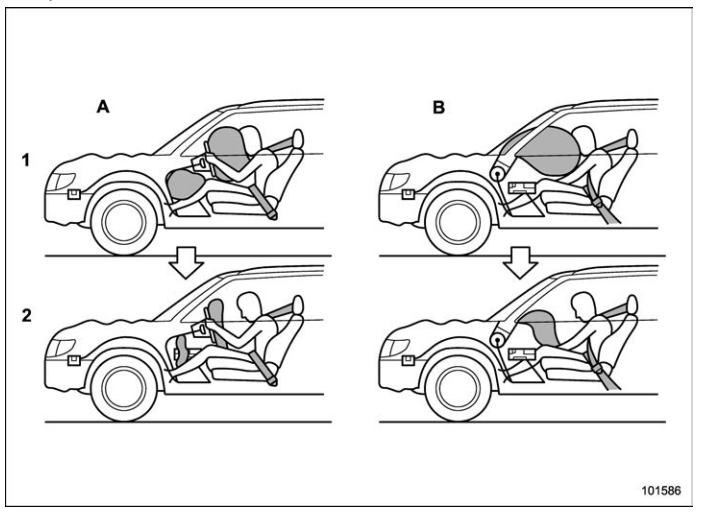

1. Driver’s side
2. Passenger’s side

1. SRS AIRBAGs deploy as soon as a collision occurs.
2. After deployment, SRS AIRBAGs start to deflate immediately so that the driver’s vision is not obstructed.

The SRS airbags can function only when the ignition switch is in the “ON” position.

The SUBARU advanced frontal airbag system is designed to determine the activation or deactivation condition of the front passenger’s SRS frontal airbag depending on the characteristic of item(s) or person on the front passenger’s seat monitored by the front passenger’s occupant detection system sensor. For this reason, only the driver’s SRS frontal airbag may deploy in the event of a collision, but this does not mean failure of the system.

If the following sensors detect a predetermined amount of force during a frontal collision, the control module sends signals to the airbag module(s) (only driver’s module or both driver’s and front passenger’s modules) instructing the module(s) to inflate the SRS frontal airbag(s).

• The front sub sensors
• The impact sensors in the airbag control module

On the driver’s side, the SRS knee airbag also inflates with the SRS frontal airbag.

The driver’s and front passenger’s SRS frontal airbags use dual stage inflators. The two inflators of each airbag are triggered either sequentially or simultaneously, depending on the severity of impact, in the case of the driver’s SRS frontal airbag and depending on the severity of impact and the characteristic of item(s) or person on the seat in the case of the front passenger’s SRS frontal airbag.

Steps To Take After Your Airbag Deploys

If the passenger’s frontal airbag OFF indicator illuminates and the ON indicator turns off even when the front passenger’s seat is occupied by an adult

..

Example of the type of accident

The driver’s SRS frontal airbag and front passenger’s SRS frontal airbag are designed as follows. To deploy in the event of an accident involving a moderate to severe frontal collision To function on a one-time-only basis The driver’s SRS frontal airbag and front passenger’s SRS f..
