Detecting sensor(s)

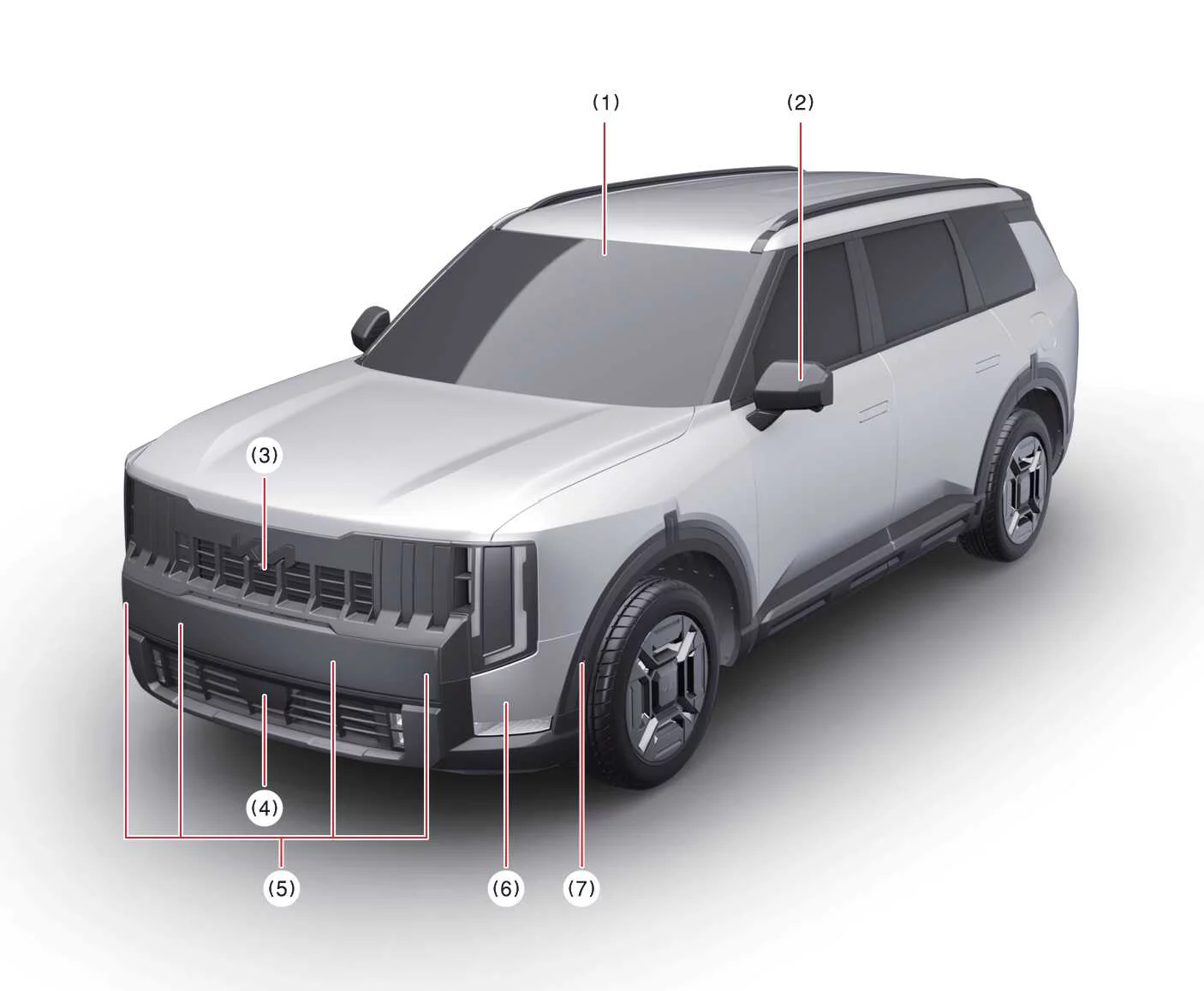

Kia Telluride front view detecting sensor locations for driver assistance systems — Figure 1. Front view

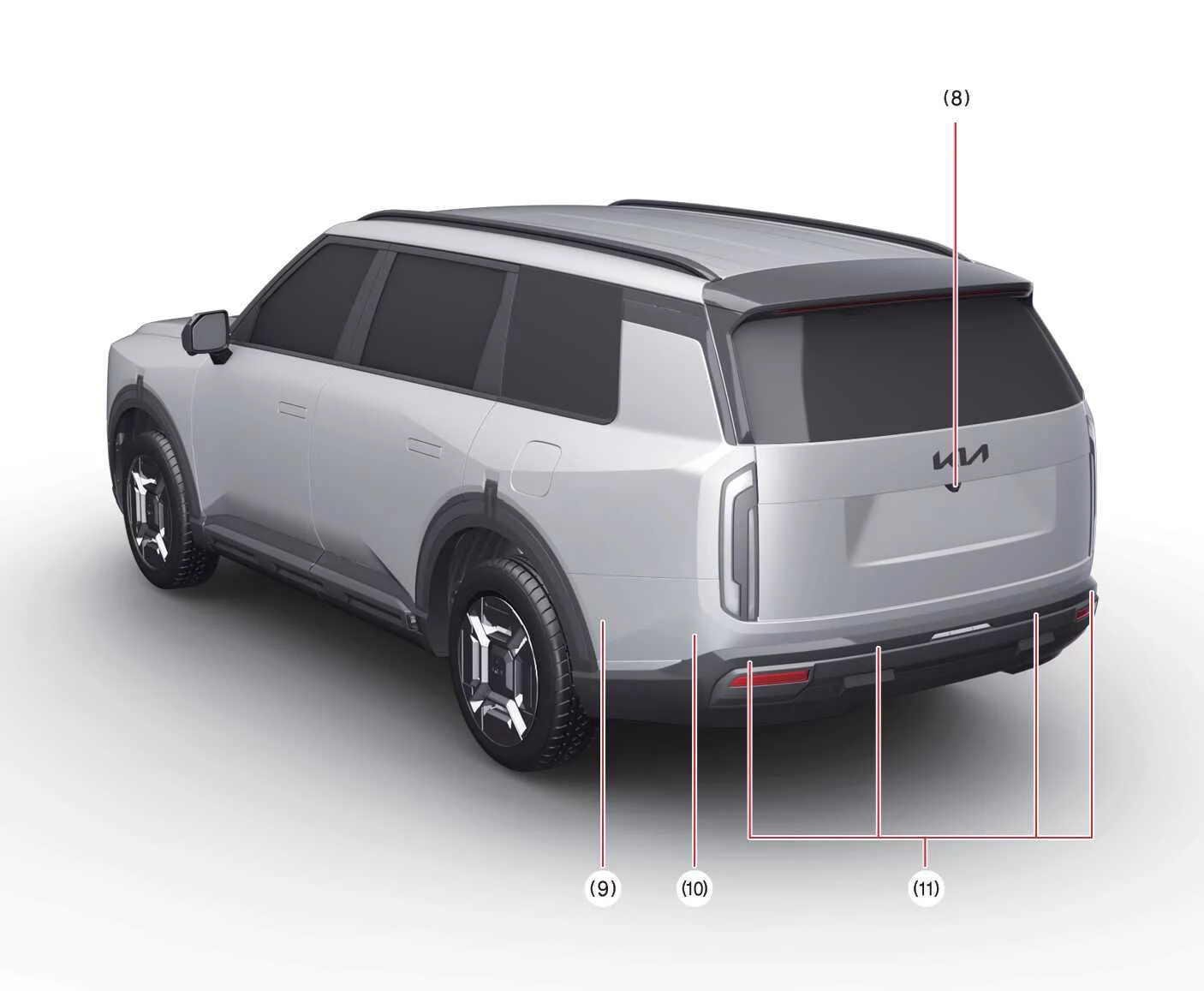

Kia Telluride rear view detecting sensor locations for driver assistance systems — Figure 2. Rear view

Refer to the illustrations above for the detailed locations of the detecting sensors used by the driver assistance systems.

: if equipped
No	Sensor	Function
(1)	Front view camera	High Beam Assist (HBA) Forward Collision-Avoidance Assist (FCA) (Sensor Fusion) Lane Keeping Assist (LKA) Intelligent Speed Limit Assist (ISLA)* Driver Attention Warning (DAW) Smart Cruise Control (SCC) Lane Following Assist (LFA) Highway Driving Assist (HDA)* Emergency Stop (ES)
(2)	Wide-side view camera*	Blind-Spot View Monitor (BVM)* Surround View Monitor (SVM)*
(3)	Wide-front view camera*	Surround View Monitor (SVM)*
(4)	Front radar	Forward Collision-Avoidance Assist (FCA) (Sensor Fusion) Smart Cruise Control (SCC) Highway Driving Assist (HDA)* Lane Keeping Assist (LKA) Emergency Stop (ES)
(5)	Front ultrasonic sensors	Parking Distance Warning (PDW) Remote Smart Parking Assist (RSPA)*
(6)	Front corner radar*	Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)* Smart Cruise Control (SCC)* Highway Driving Assist (HDA)*
(7)	Front side ultrasonic sensors*	Parking Distance Warning (PDW) Remote Smart Parking Assist (RSPA)*
(8)	Wide-rear view camera	Rear View Monitor (RVM)* Surround View Monitor (SVM)* Reverse Parking Collision-Avoidance Assist (PCA)*
(9)	Rear side ultrasonic sensors*	Parking Distance Warning (PDW) Remote Smart Parking Assist (RSPA)*
(10)	Rear corner radar	Forward Collision-Avoidance Assist (FCA) (Sensor Fusion) Blind-Spot Collision-Avoidance Assist (BCA) Safe Exit Assist (SEA) Highway Driving Assist (HDA)* Rear Cross-Traffic Collision-Avoidance Assist (RCCA) Lane Keeping Assist (LKA)
(11)	Rear ultrasonic sensors	Parking Distance Warning (PDW) Reverse Parking Collision-Avoidance Assist (PCA)* Remote Smart Parking Assist (RSPA)*
