Subaru Forester 2019-2025 Owners Manual / Instruments and controls / Basic screens / EyeSight screen
Subaru Forester: Basic screens / EyeSight screen

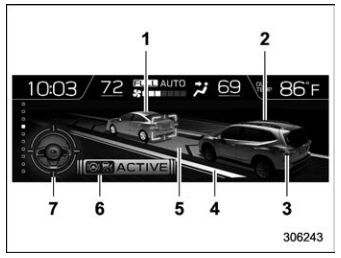

- Lead vehicle indicator
- Your own vehicle indicator
- Stop lights
- Road line indicator
- Lane indicator
- Lane Centering indicator
- Steering wheel indicator
This screen displays the status of the EyeSight system. The lead vehicle indicator moves forward and backward depending on the distance with the vehicle in front. For details, refer to the Owner’s Manual supplement for the EyeSight system.
Favorite screen
Favorite screen (display example)
This screen displays up to three optional
pieces of information that can be selected
from the following items.
The engine coolant temperature is
displayed...
Other information:
Subaru Forester 2019-2025 Owners Manual: Type C
Temperature control dial (Refer to “Automatic climate control operation”and/or “Temperature control”) AUTO button (Refer to “Automatic climate control operation”) Air conditioner button (Refer to “Air conditioner control”) Air inlet selection button (Refer to “Air inlet selection”) MAX A/C button (Refer to “MAX A/C mode (for type B and C)”) Defroster button (Refer to “Defrosting”) Rear window defogger button and outside mirror defogger button (Refer to “Defogger and deicer”) Airflow mode selection dial (Refer to “Airflow mode selection”) Fan speed control dial (Refer to “Fan speed control”) ON/OFF button (Refer to “Automatic climate control operation”) NOTE The climate control screen is displayed on the multi-function display (color LCD)...
Subaru Forester 2019-2025 Owners Manual: Brake fluid
Checking the fluid level WARNING Never let brake fluid contact your eyes because brake fluid can be harmful to your eyes. If brake fluid gets in your eyes, immediately flush them thoroughly with clean water. For safety, when performing this work, wearing eye protection is advisable...
Categories
- Manuals Home
- Subaru Forester Owners Manual
- Subaru Forester Service Manual
- Unlock using PIN Code Access
- Shift lock release using the shift lock release button
- Steering Responsive Headlight (SRH)
- New on site
- Most important about car
Outside temperature indicator
The outside temperature is displayed on the multi-function display (color LCD).
NOTE
The outside temperature indicator shows the temperature around the sensor. However, the temperature may not be indicated correctly or the update may be delayed in the following conditions. While parking or driving at low speeds When the outside temperature changes suddenly (example: when going in and out of an underground parking area or when passing through a tunnel) When starting the engine after being parked for a certain period of time The temperature unit cannot be changed.
