Kia Telluride (LQ2, 2027-2026) Owner's Manual / What to do in an emergency / Tire Pressure Monitoring System (TPMS)

Subaru Forester: What to do in an emergency / Tire Pressure Monitoring System (TPMS)

The Tire Pressure Monitoring System (TPMS) actively measures real-time air pressure across all installed road wheels and presents key pressure telemetry directly on the Kia Telluride digital instrument cluster display.

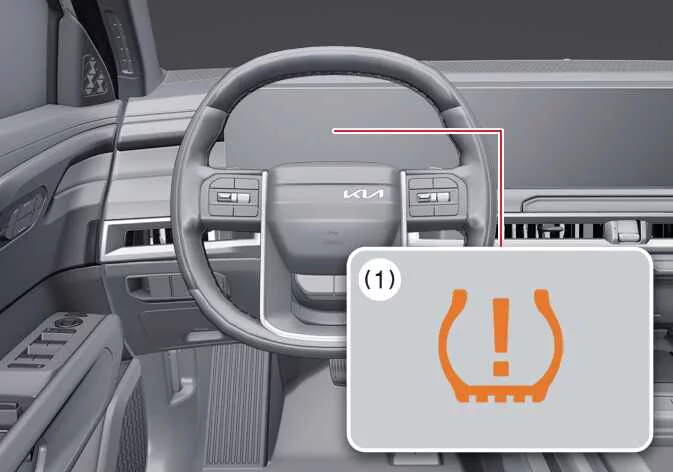

Low tire pressure warning icon and TPMS system malfunction indicator light
Individual low tire pressure wheel position graphic (displayed directly within the instrument cluster center screen)

Tire pressure indicator

You can monitor individual pressure levels in real time by navigating to Assist Mode on the Kia Telluride instrument cluster screen (for comprehensive menu navigation details, consult the LCD display modes section).
Individual pressure readouts populate on the cluster screen within 1–2 minutes after you begin driving as sensor signals calibrate.
If pressure values do not display while the vehicle is parked or idling, the message "Drive to display" will remain active; drive for a short distance to allow sensors to transmit updated pressure data.
You can customize measurement units (psi, kPa, or bar) through the User Settings menu on the instrument cluster to suit your personal preference.

TIP

Air pressure fluctuations naturally occur due to ambient outdoor temperatures, parking conditions, aggressive driving styles, and dramatic changes in altitude above sea level.

Readings shown on the Kia Telluride digital instrument cluster may slightly differ from values obtained using a handheld mechanical or digital tire pressure gauge due to sensor calibration tolerances.

A low tire pressure alert may trigger if a single tire's pressure drops significantly compared to adjacent tires; this is normal operation driven by localized temperature variances during vehicle operation.

In case of an emergency while driving

I..

Effective use of TPMS

Every tire installed on your Kia Telluride, including the compact spare tire (if equipped), should be thoroughly checked monthly when cold and adjusted to the exact inflation pressure specified on the driver's side B-pillar tire information placard...
