Subaru Forester: Windshield wiper and washer switches / Windshield washer
To wash the windshield, pull the wiper control lever toward you. The washer fluid sprays until you release the lever. The wipers operate while you pull the lever.
NOTE

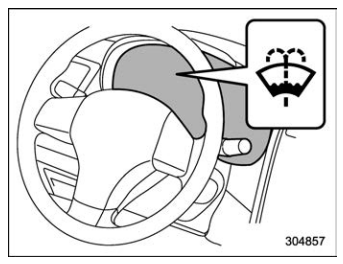

Windshield washer fluid warning light
The windshield washer fluid warning light illuminates when the washer fluid level in the tank has dropped to the lower limit. If the warning light illuminates, refill the tank with fluid. For the refilling procedure, refer to “Windshield washer fluid”.
Rear window wiper and washer switch
: Washer operation (accompanied by
wiper operation)
: Continuous operation
: Intermittent operation
: Off
: Washer operation (accompanied
by wiper operation)..
