Subaru Forester: Driver adjustments / Wipers and washers

The Kia Telluride wiper and washer system is designed to remove rain, dirt, snow, and other debris from the windshield and rear window, helping maintain clear visibility in changing weather and driving conditions.

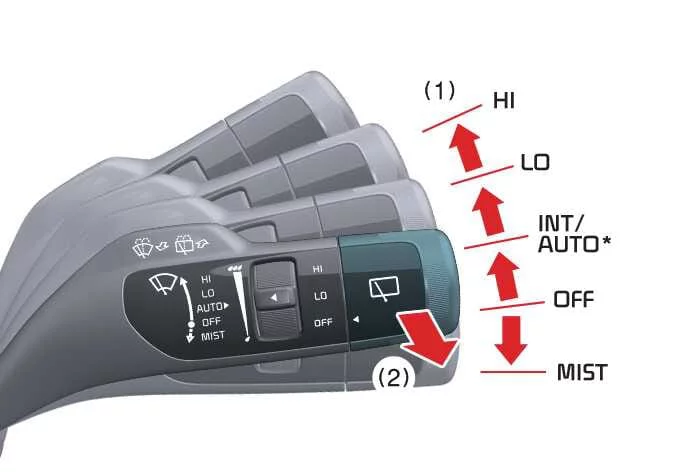

Kia Telluride front windshield wiper and washer control lever

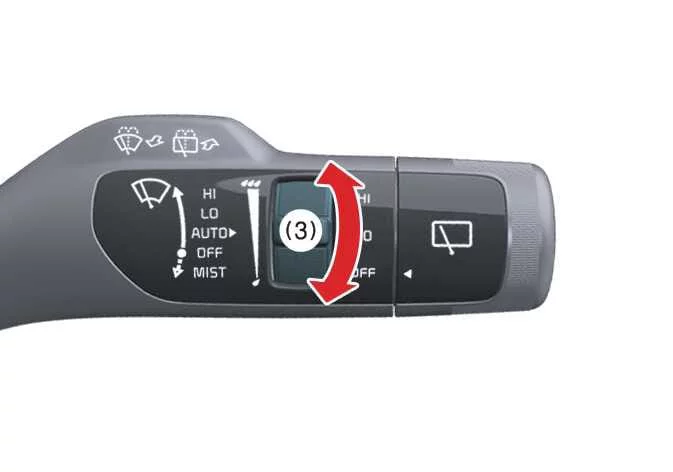

Kia Telluride rear wiper and washer control positions

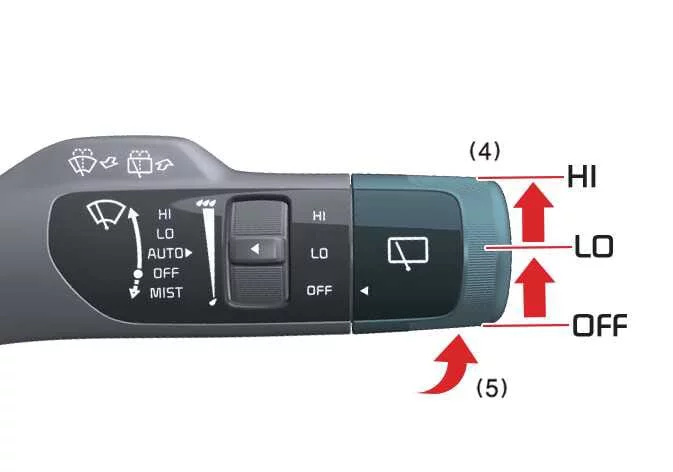

Kia Telluride windshield wiper multifunction stalk diagram
  1. Wiper speed control

    • MIST: Single wipe

    • OFF: Wipers turned off

    • INT: Intermittent wiping

    • AUTO*: Rain sensor-controlled wiping

    • LO: Low-speed wiping

    • HI: High-speed wiping

  2. Windshield washer with several automatic wipes (pull the lever toward you)

  3. Adjustment of intermittent wiping interval and AUTO sensitivity*

  4. Rear wiper and washer control

    • HI: Continuous wiping

    • LO: Intermittent wiping

    • OFF: System turned off

  5. Rear washer with several automatic wipes (push the lever away from you)

*: if equipped

Windshield wipers

With the Kia Telluride in the ON position, operate the windshield wipers using the following settings:

  • MIST: Move the lever to this position and release it for a single wiping cycle. Holding the lever in this position keeps the wipers operating continuously.

  • OFF: Turns the windshield wipers off.

  • INT: Provides intermittent wiping at preset intervals, making it suitable for light rain or mist. Rotate the interval control knob to increase or decrease the wiping frequency.

  • LO: Continuous wiping at normal speed.

  • HI: Continuous wiping at maximum speed for heavy rainfall.

WARNING

Do not activate the washer system in freezing weather until the windshield has been adequately warmed by the defroster. Washer fluid can freeze on the glass, severely reducing visibility and increasing the risk of an accident that could result in serious injury, death, or property damage.

NOTE

If snow or ice has accumulated heavily on the windshield, fully clear or defrost the glass for approximately 10 minutes before operating the wipers. Using the Kia Telluride wipers on a frozen windshield may damage both the blades and the washer system.

NOTE

  • If a communication fault occurs within the wiper system and normal operation is unavailable, move the wiper switch to the LO position. The wipers will continue operating at a constant low speed. Have the system inspected by an authorized Kia dealer as soon as possible.

  • When the switch is in the HI position, wiping speed may gradually decrease as rainfall becomes lighter and blade friction increases. Once rainfall intensifies again and resistance is reduced, normal high-speed operation will automatically return.

TIP

The infotainment system interface may change after software updates. Refer to the infotainment owner's manual and the supplied quick reference guide for the latest operating information.

TIP

If you operate the windshield wipers while driving through heavy snow, accumulated snow may temporarily stop the wipers. This is a built-in protective feature designed to prevent motor overload and damage. Remove the snow collected along the upper and lower edges of the windshield before using the wipers again.

High Beam Assist (HBA)

The High Beam Assist (HBA) system on the Kia Telluride is designed to improve nighttime visibility by automatically switching between high and low beam headlights. Using information gathered from the vehicle's sensors, the system..

AUTO control: (if equipped)

Wiper speed control switch The rain sensor, positioned near the upper portion of the windshield, continuously detects the amount of rainfall and automatically adjusts the wiping interval...
